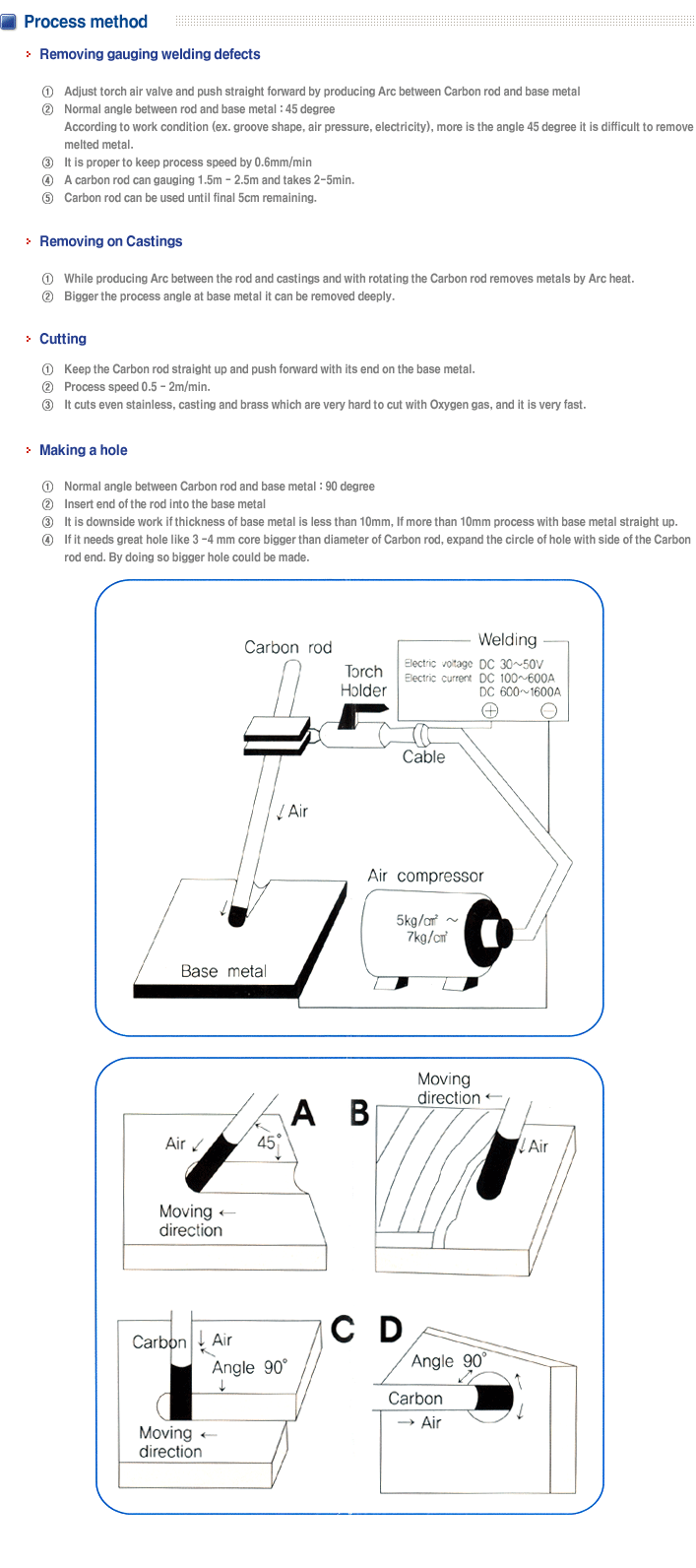

-- Process method

   - Removing gauging welding defects

	1 Adjust torch air valve and push straight forward by producing Arc between carbon rod and base metal.

	2 Normal angle between rod and base metal: 45 degree

	    Accorging to work condition (ex. groove shape, air pressure, electricty), more is the angle 45 degree it is difficult to remove

	    melted metal.

	3 It is proper to keep process speed by 0.6mm/min.

	4 A carbon rod work gauging 1.5m - 2.5m and takes 2-5 min.

	5 Carbon rod can be used until final 5cm remaining.



    - Removing on Castings

	1 While producing Arc between the rod and castings and with rotating the carbon rod removes metals by arc heat.

	2 Bigger the process angle at base metal it can be removed deeply.



   - Cutting

	1 Keep the carbon rod straight up and push forward with its end on the base metal.

	2 Process speeed 0.5 -2m/min.

	3 It cuts even stainless, castings and brass which are very hard to cut with oxygen gas, and it is very fast.



    - Making a hole

	1 Normal angle between carbon rod and bae metal: 90 degree

	2 Insert end of the rod into the base metal

	3 It is downside work if thickness of base metal is less than 10mm, if more than 10min process with base metal straight up.

	4 It it nees great hole like 3-4mm core bigger than diameter of carbon rod, expan the circle of hole with side of the carbon
	    rod end. By doing so bigger hole could be made.
